Stainless Steel Woven Wire Edging,Special Size For Stainless Steel Filter Mesh Round Sheet
Stainless steel woven wire mesh is made of high quality stainless steel wire and formed under the specific
temperature conditions and then through drawing machine stretched to the provision of the wire.It is easier to install after wraping the edges .Without sharp edges ,it is more beautiful.
Mesh Round Sheet Discription
| Material | SUS 302, 304, 304 L, 316, 316 L, etc. Monel, inconel,copper wire etc. |
| Wire Diameter | 0.15-3mm |
| Width | 0-2m |
| Mesh Size | 1-635Mesh |
| Feature | Heat Resistant Acid and alkali resistant oxidation resistant |
| Usage | Filter, quakeproof, sound attenuation,etc |
| Length | 0-30m customized with your need |
| | mesh | wire | hole | weight/per square meter(KG) |
| Plain weave | 1 | 2mm×2mm | 23.4 | 2 |
| Plain weave | 2 | 1.5mm×1.5mm | 11.2 | 2.25 |
| Plain weave | 3 | 1.0mm×1.0mm | 7.466 | 1.5 |
| Plain weave | 4 | 0.9mm×0.9mm | 5.45 | 1.62 |
| Plain weave | 5 | 0.8mm×0.8mm | 4.28 | 1.6 |
| Plain weave | 6 | 0.7mm×0.7mm | 3.53 | 1.47 |
| Plain weave | 7 | 0.6mm×0.6mm | 3.02 | 1.26 |
| Plain weave | 8 | 0.5mm×0.5mm | 2.675 | 1 |
| Plain weave | 9 | 0.5mm×0.5mm | 2.322 | 1.125 |
| Plain weave | 10 | 0.8mm×0.8mm | 1.74 | 3.2 |
| Plain weave | 11 | 0.7mm×0.7mm | 1.609 | 2.695 |
| Plain weave | 12 | 0.6mm×0.6mm | 1.516 | 2.16 |
| Plain weave | 13 | 0.5mm×0.5mm | 1.453 | 1.625 |
| Plain weave | 14 | 0.4mm×0.4mm | 1.414 | 1.12 |
| Plain weave | 15 | 0.4mm×0.4mm | 1.293 | 1.2 |
| Plain weave | 16 | 0.35mm×0.35mm | 1.237 | 0.98 |
| Plain weave | 17 | 0.35mm×0.35mm | 1.144 | 1.041 |
| Plain weave | 18 | 0.35mm×0.35mm | 1.061 | 1.1 |
| Plain weave | 19 | 0.35mm×0.35mm | 0.986 | 1.16 |
| Plain weave | 20 | 0.3mm×0.3mm | 0.97 | 0.9 |
| Plain weave | 21 | 0.3mm×0.3mm | 0.909 | 0.945 |
| Plain weave | 22 | 0.3mm×0.3mm | 0.854 | 0.99 |
| Plain weave | 23 | 0.25mm×0.25mm | 0.854 | 0.718 |
| Plain weave | 24 | 0.2mm×0.2mm | 0.858 | 0.48 |
| Plain weave | 25 | 0.2mm×0.2mm | 0.816 | 0.5 |
| Plain weave | 26 | 0.2mm×0.2mm | 0.776 | 0.52 |
| Plain weave | 27 | 0.2mm×0.2mm | 0.74 | 0.54 |
| Plain weave | 28 | 0.3mm×0.3mm | 0.607 | 1.26 |
| Plain weave | 29 | 0.3mm×0.3mm | 0.575 | 1.3 |
| Plain weave | 30 | 0.3mm×0.3mm | 0.546 | 1.35 |
| Plain weave | 40 | 0.25mm×0.25mm | 0.385 | 1.25 |
| Plain weave | 50 | 0.2mm×0.2mm | 0.308 | 1 |
| Plain weave | 60 | 0.15mm×0.15mm | 0.273 | 0.675 |
| Plain weave | 70 | 0.14mm×0.14mm | 0.222 | 0.686 |
| Plain weave | 80 | 0.12mm×0.12mm | 0.197 | 0.576 |
| Plain weave | 90 | 0.11mm×0.11mm | 0.172 | 0.544 |
| Plain weave | 100 | 0.10mm×0.10mm | 0.154 | 0.5 |
| Plain weave | 120 | 0.08mm×0.08mm | 0.131 | 0.384 |
| Plain weave | 150 | 0.07mm×0.07mm | 0.099 | 0.367 |
| Plain weave | 180 | 0.05mm×0.05mm | 0.091 | 0.225 |
| Plain weave | 200 | 0.05mm×0.05mm | 0.077 | 0.25 |
| Plain weave | 250 | 0.04mm×0.04mm | 0.0616 | 0.2 |
| Plain weave | 270 | 0.035mm×0.035mm | 0.059 | 0.165 |
| Plain weave | 300 | 0.03mm×0.03mm | 0.054 | 0.135 |
| Plain weave | 325 | 0.027mm×0.027mm | 0.051 | 0.118 |
| Plain weave | 350 | 0.025mm×0.025mm | 0.047 | 0.109 |
| Plain weave | 380 | 0.02mm×0.02mm | 0.046 | 0.076 |
| Plain weave | 400 | 0.018mm×0.018mm | 0.0455 | 0.0648 |
Mesh Round Sheet Characteristics:
Materials: Stainless steel wire, nickel wire, brass wire.Black iron wire ,galvanized wire
Stainless steel wire materials divided into SUS 302, 304, 304 L, 316, 316 L, etc.
Mesh: It show the sparse and dense of the wire mesh.
In general, higher than 80 for the mesh is known as a high mesh. Less than 80 purpose called coarse mesh.
Wire diameter is divided into warp and weft.
Common weaving type:
Plain weave, twill weave, dutch weave, mat type twill weave, double wire dutch weave, five heddle weave.
This wire structure is precision, uniform mesh, the mesh filtration accuracy is good, anti-wearing,
high temperature resistant, acid resistant, corrosion-resistant properties.
SMesh Round Sheet Application:
It could be used as a false bottom of a filter.
Stainless steel mesh piece is used for sieve and filtration at acids and alkali condition.
It is widely used as mud wire mesh at oil industry, sieve strainer at chemical fiber industrial and
acid pickling mesh at electro plating industry.
In addition to the above, stainless steel wire mesh also used
in construction industry, sand filtration, liquid and gas filtration.

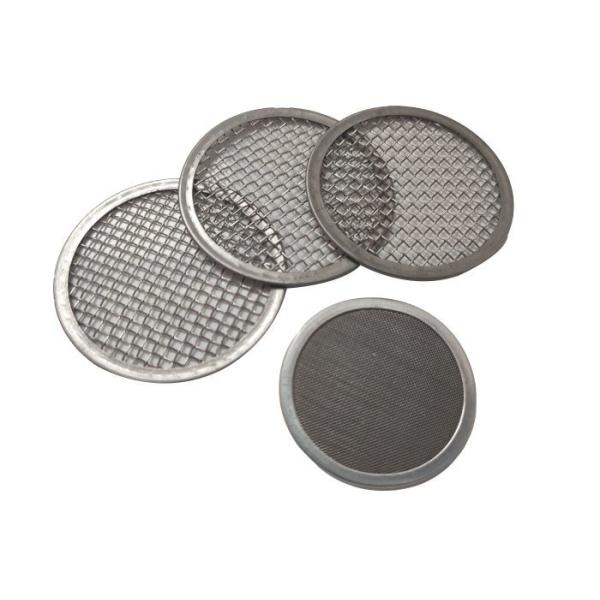

Product show:
Packing details:Plastic film wrap and wooden box(support customized)
